Heavy|mate®

C146 Connectors

heavy| mate® heavy duty connectors are a modular connector line consisting of hoods &  housings, inserts and contacts.  A customizable solution ideally suited for harsh environments where a robust design is necessary. Can be used for creating power and signal connections outdoors.  heavy| mate® offers 3 to 280 poles per connector, current ratings up to 250A per contact and voltage up to 1000V.

Downloads »

Type

Gender

Contact Layout

24+PE Hood

Top Entry, Low Profile, C146E

C14610G0246008

PG21C146 10G024 600 8Drawing
M40C146 21R024 601 8

24+PE Housing

Bulkhead Mounting

C14610F0240001

C146EC146 10F024 000 1Drawing

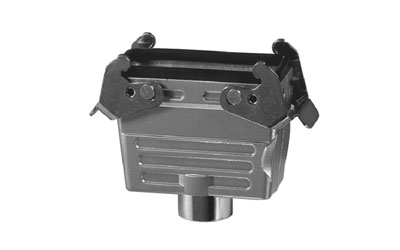

24+PE Coupling Hood

High Profile, H = 76mm, C146E

C14610G0248028

PG21C146 10G024 802 8Drawing
M32C146 10G024 802 1
M40C146 10G024 802 8

24+PE Housing

Double Side Entry, H = 64mm

C14610F0246001

PG21C146 10F024 600 1Drawing
M32C146 10F024 600 1

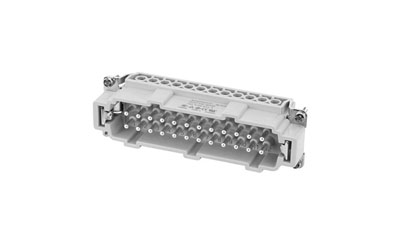

24+PE Insert

400VAC, 18A with Wire Protection

C14610A0241021

C146EC146 10A024 102 1Drawing

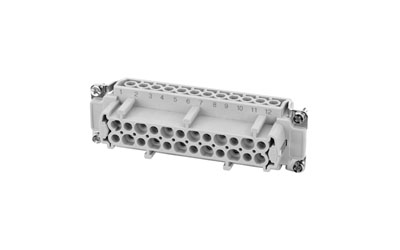

24+PE Insert

400VAC, 18A with Wire Protection

C14610B0241021

C146EC146 10B024 102 1Drawing

24+PE Hood

Side Entry, Low Profile, C146E

C14610G0245001

PG21C146 10G024 500 1Drawing
M20C146 21R006 506 1

16+PE Hood

Top Entry, Low Profile, C146E

C14610G0166001 / C14610G0166011

PG21C146 10G016 600 1Drawing
PG29C146 10G016 601 1Drawing
M40C146 21R016 601 8Drawing

Male 16+PE Insert

400VAC, 19A with Wire Protection

C14610A0161021

C146EC146 10A016 102 1Drawing

16+PE Coupling Hood

Low Profile, H = 62mm, C146E

C14610G0168021

PG21C146 10G016 802 1Drawing

16+PE Coupling Hood

High Profile, H = 76mm, C146E

C14610G0168038

PG29C146 10G016 803 8Drawing
M40C146 21R016 803 8

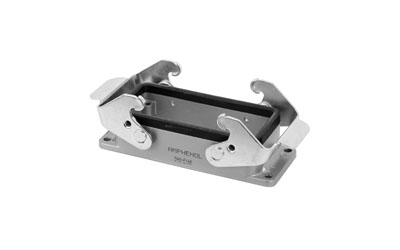

16+PE Housing

Bulkhead Mounting

C14610F0160001

C146EC146 10F016 000 1Drawing

16+PE Housing

Double Side Entry, H = 64mm, C146E

C14610F0166001

PG21C146 10F016 600 1

16+PE Hood

Side Entry, Low Profile, C146E

C14610G0165001

PG21C146 10G016 500 1Drawing
M32C146 21R016 500 1Drawing

10+PE Housing

Double Sde Entry, H = 57mm, C146E

C14610F0106001

PG 16C146 10F010 600 1Drawing
M32C146 10F010 600 1

10+PE Protective Cover

Suitable for 10+PE, C146E Housings

C14610Z0101001

CoverC146 10Z010 100 1Drawing

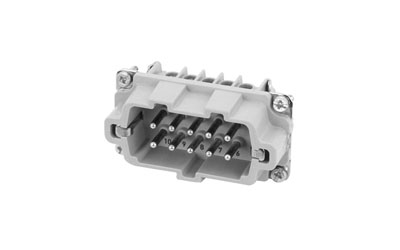

Male 10+PE Insert

400VAC, 19A with Wire Protection

C14610A0101021

C146EC146 10A010 102 1Drawing

10+PE Hood

Side Entry, Low Profile,

C14610G0105001

PG16C146 10G010 500 1Drawing
M25C146 21R010 500 1

10+PE Coupling Hood

Low Profile, H = 51mm, C146E

C14610G0108021 / C14610G0108031

PG16C146 10G010 802 1
PG21C146 10G010 803 1
M25C146 21R010 802 1

10+PE Coupling Hood

High profile, H = 70mm, C146E

C14610G0108028

PG21C146 10G010 802 8Drawing
M32C146 21R010 802 8

10+PE Hood

Top Entry, Low Profile, C146E

C14610G0106001 / C14610G0106011 / C14610G0106018

PG16C146 10G010 600 1
PG21C146 10G010 601 1
PG29C146 10G010 601 8Drawing
M32C146 21R010 600 8

10+PE Housing

Bulkhead Mounting

C14610F0100001

C146EC146 10F010 000 1Drawing

10+PE Housing

Single Side Entry, H = 57mm

C14610F0105001

PG16C146 10F010 500 1Drawing
M25C146 10N010 500 1

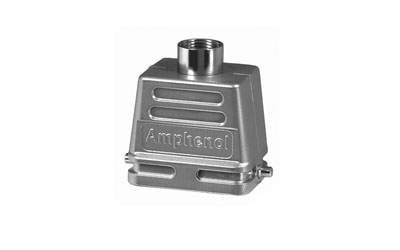

6+PE Hood

Top Entry, Low Profile, C146E

C14610G0066011

PG16C146 10G006 601 1Drawing
M25C146 21R006 607 1

6+PE Housing

Bulkhead Mounting

C14610F0060001

C146EC146 10F006 000 1Drawing

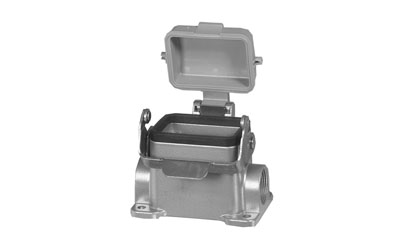

6+PE Housing

Double Side Entry, H = 54mm

C14610F0066061

PG16C146 10F006 606 1Drawing
M20C146 10N006 607 2

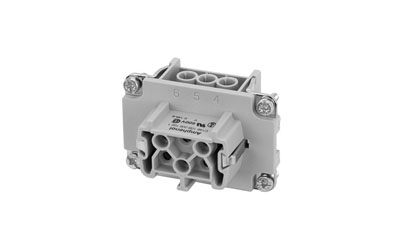

Female 6+PE Insert

400VAC, 22A with Wire Protection

C14610B0061021

C146EC146 10B006 102 1Drawing

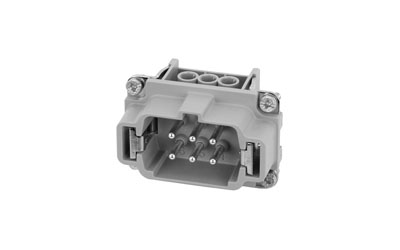

Male 6+PE Insert

400VAC, 22A with Wire Protection

C14610A0061021

C146EC146 10A006 102 1Drawing

6+PE Hood

Side Entry, Low Profile, C146E

C14610G0065001

PG13.5C146 10G006 500 1Drawing

6+PE Coupling Hood

Low Profile, H = 52mm, C146E

C14610G0068041 / C14610G0068051 / C14621R0068051 / C14621R0068041

PG13.5C146 10G006 804 1Drawing
PG16C146 10G006 805 1Drawing
M20C146 21R006 804 1
M25C146 21R006 805 1

6+PE Hood

Top Entry, Low Profile, C146E

C14610G0066001

PG13.5C146 10G006 600 1Drawing
M20C146 21R006 606 1

Male 4+PE Insert

400VAC, 10A

C14610A0040024

C146AC146 10A004 002 4Drawing

Female 4+PE Insert

400VAC, 10A

C14610B0040024

C146AC146 10B004 002 4Drawing

Male 3+PE Insert

400VAC, 10A

C14610A0030024

C146AC146 10A003 002 4Drawing

Female 3+PE Insert

400VAC, 10A

C14610B0030024

C146AC146 10B003 002 4Drawing

Gland Bushing

IP65 with Variable Inner Diameter, Pack of 10

PG11VN16 110 0014 X
PG13.5VN16 135 0014 X
PG16VN16 160 0014 X
PG21VN16 210 0014 X
PG29VN16 290 0014 X

Hood

3/4 pole, Cable to Cable Coupling

C14630G0038044

PG11C146 30G003 804 4Drawing
M20C146 30R003 804 4

Cable Clamp

IP65 without Gasket, Pack of 5

PG13.5VN16 135 0002 V
PG16VN16 160 0002 V
PG21VN16 210 0002 V
PG29VN16 290 0002 V

Female Insert

400VAC, 19A with Wire Protection

C14610B0101021

C146EC146 10B010 102 1Drawing

Hood

3/4 Pole, Top Entry

C14630G0036004

PG11C146 30G003 600 4Drawing
M20C146 30R003 600 4

Sealing

Variable Inner Diameter and Pressure Rings, Pack of 10

PG13.5VN16 135 0029 X
PG16VN16 160 0029 X
PG21VN16 210 0029 X
PG29VN16 290 0029 X

Housing

Bulkhead Mounting c/w Gasket

C14630F0030004

3/4 PoleC146 30F003 000 4Drawing

Adaptor

PG Male to Metric Female, 1.5mm Pitch

PG11 to M20PG11/M20
PG13.5 to M20PG13.5/M20

Adaptor

PG Male to Metric Female, 1.5mm Pitch

PG16 to M20PG16/M20
PG21 to M25PG21/M25
PG29 to M32PG29/M32

Key Pin

with Lock Washer

VN170500004101

Key PinVN17 050 0004 101

Quick Facts

C146A
  • Available in 3+PE and 4+PE
  • Offers a narrow style with a screw termination insert rated to 18A @ 400VAC 3/4 +PE
  • Screw terminals can accommodate wire gauge 0.25 – 2.5mm2
C146E
  • Contact insert for screw termination with wire protection is rated to:
    – 22A @ 400VAC 6+PE
    – 19A @ 400VAC 10+PE
    – 19A @ 400VAC 16+PE
    – 18A @ 400VAC 24+PE
  • Stocked in 6+PE, 10+PE, 16+PE, 24+PE
  • Screw terminals can accommodate wire gauge 0.25 – 2.5mm2
  • Offers a high protection against mismating (Female inserts with funnel shaped contact entry avoids mismating)
  • Housings are supplied complete with a PG threaded stud
